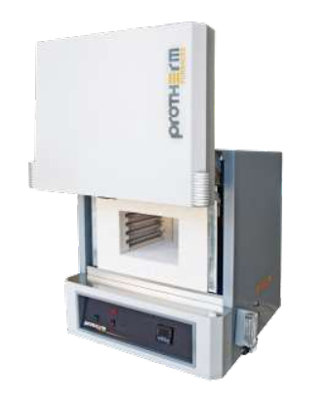

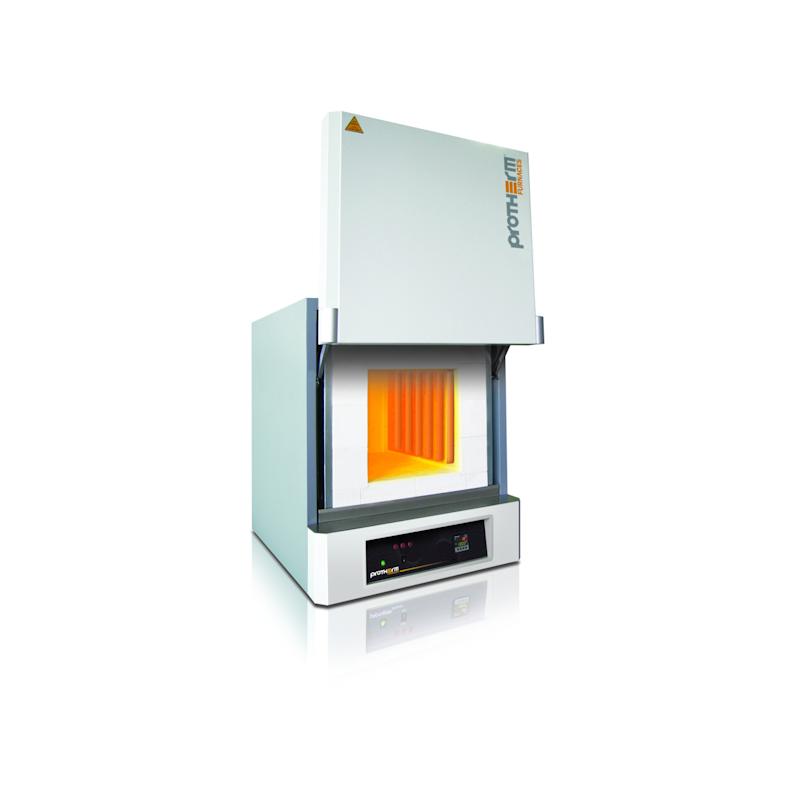

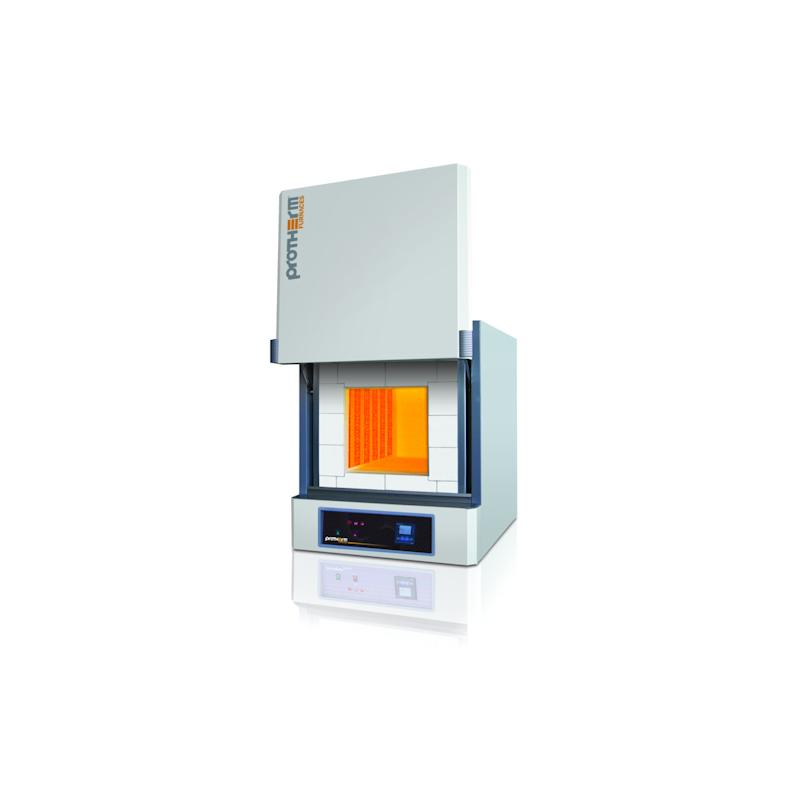

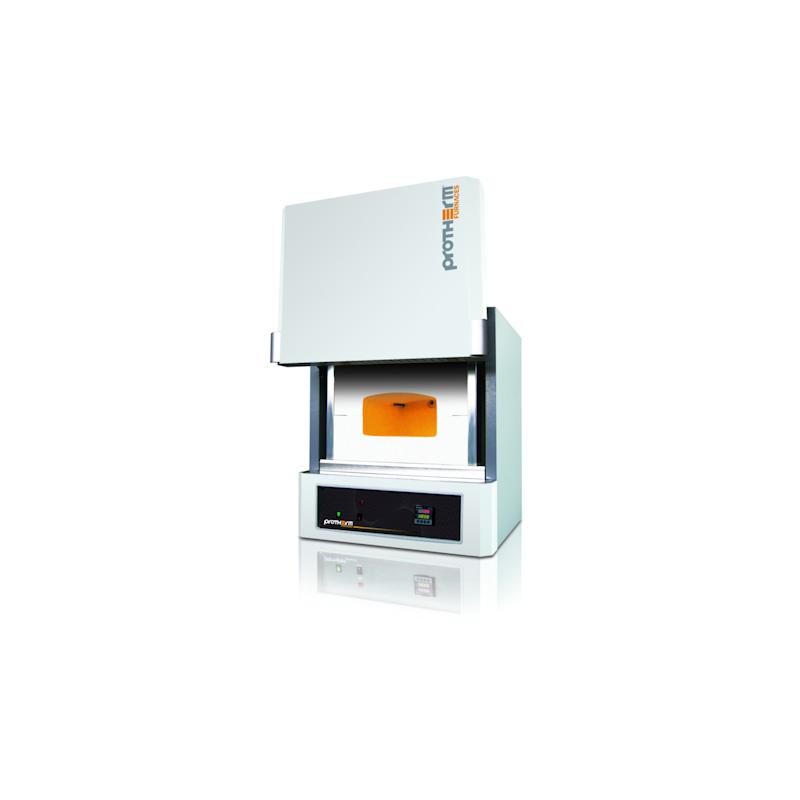

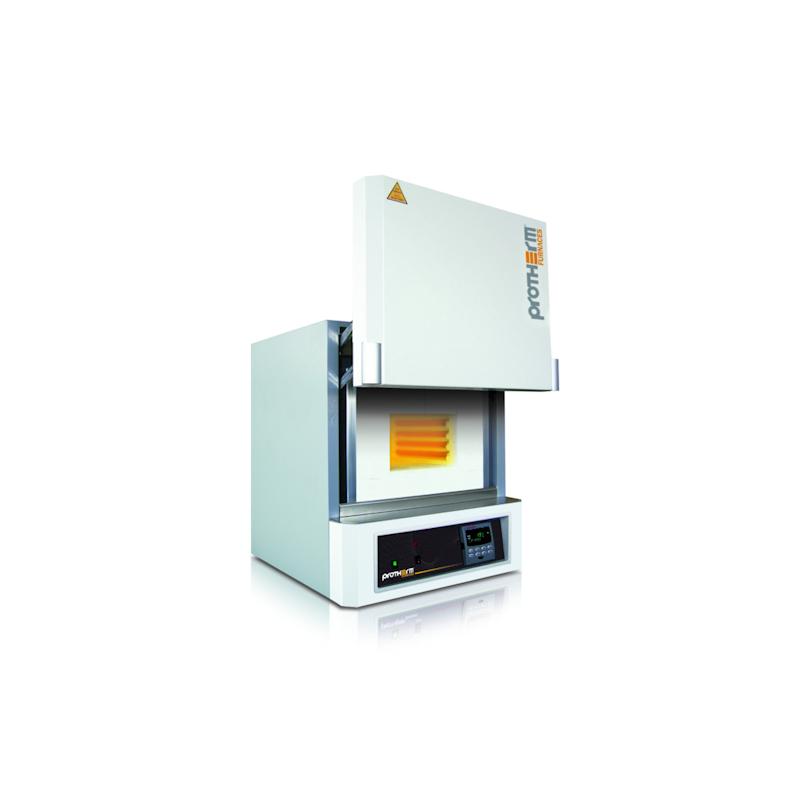

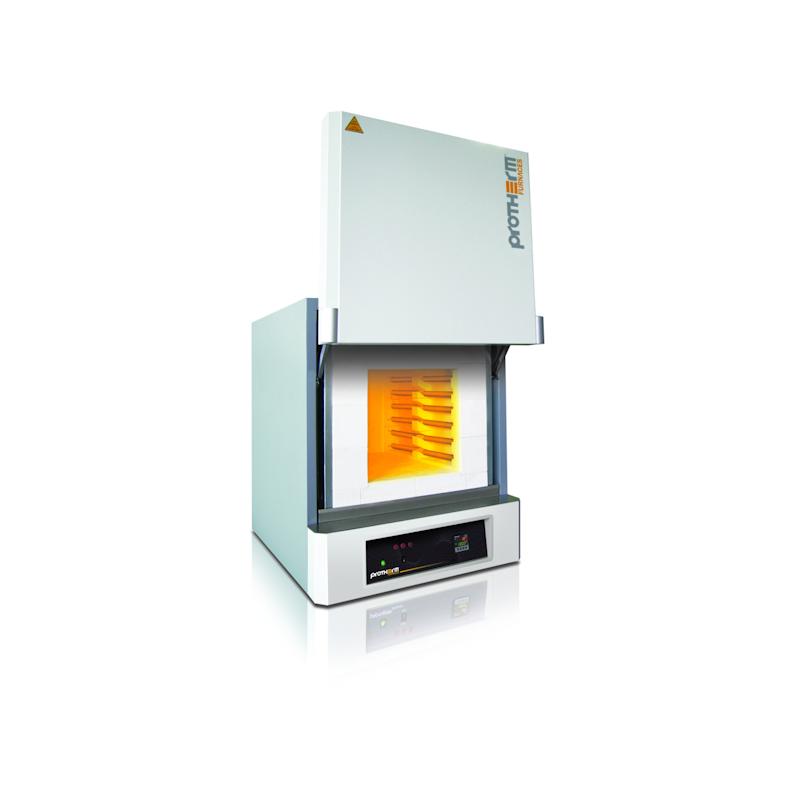

Standard PLF series furnaces cover a range from 1100°C to 1600°C, all of which have front loading for easy operation and double skin construction to maintain a cooler outer case.
Important advantage of the model is that element change is very easy and economic. Furnaces starting from 1400°C use Silicon Carbide heating elements, providing a very long service life.
The durability of the SiC rods in periodic use, in combination with their high heating speed, make these furnaces to all-rounders in the laboratory.
Typical applications for the product is melting, thermal ageing, ceramics sintering, metal heat treatment, chemical decomposition and thermal shock testing.
System Features
Vertical counter balanced door
Standard door safety switch
High-quality fiber material
High level temperature uniformity
Bottom protection, alumina plates on the floor
Short heating times
Brick door skirts and the furnace openings
Galvanized coating covered epoxy paint structure
Customized controller option
Standard door safety switch
High-quality fiber material
High level temperature uniformity
Bottom protection, alumina plates on the floor
Short heating times
Brick door skirts and the furnace openings
Galvanized coating covered epoxy paint structure
Customized controller option
High quality heating elements ensuring a long service life
System operation with solid-state-relays
Electrical protection
Working Temperatures of up to 1600°C
Dual skin housing for low external temperatures and high inner temperature stability
Easy replacement of heating elements
Intuitive controller user interface
System operation with solid-state-relays
Electrical protection
Working Temperatures of up to 1600°C
Dual skin housing for low external temperatures and high inner temperature stability
Easy replacement of heating elements
Intuitive controller user interface
Specifications
| Model | Maximum Temperature (°C) | Continuous Operating Temperature (°C) | Volume (L) | Inside Measurements (HxWxD) (cm) | Outside Measurements (HxWxD) (cm) | Power (kW) | Phase |
| PLF 110/6 | 1100 | 1050 | 7.0 | 14x20x25 | 65x55x58 | 2.0 | 1 |
| PLF 110/10 | 1100 | 1050 | 10.0 | 20x20x25 | 72x56x64 | 2.7 | 1 |
| PLF 110/15 | 1100 | 1050 | 15.0 | 23x22x30 | 72x56x64 | 3.6 | 1 |
| PLF 110/30 | 1100 | 1050 | 30.0 | 28x28x38 | 79x59x69 | 6.0 | 3 |
| PLF 110/45 | 1100 | 1050 | 45.0 | 30x30x50 | 82x66x81 | 7.5 | 3 |
| PLF 110/60 | 1100 | 1050 | 60.0 | 30x40x50 | 80x76x84 | 9.6 | 3 |
| PLF 115M | 1150 | 1100 | 6.5 | 11x21x28 | 65x55x58 | 2.7 | 1 |
| PLF 120/6 | 1200 | 1150 | 7.0 | 14x20x25 | 65x55x58 | 2.0 | 1 |
| PLF 120/10 | 1200 | 1150 | 10.0 | 20x20x25 | 72x56x64 | 3.6 | 1 |
| PLF 120/15 | 1200 | 1150 | 15.0 | 23x22x30 | 72x56x64 | 3.6 | 1 |
| PLF 120/30 | 1200 | 1150 | 30 | 28x28x38 | 79x59x69 | 6.0 | 3 |
| PLF 120/45 | 1200 | 1150 | 45.0 | 30x30x50 | 82x66x81 | 7.5 | 3 |
| PLF 120/60 | 1200 | 1150 | 60.0 | 30x40x50 | 80x76x84 | 9.6 | 3 |
| PLF 130/6 | 1300 | 1250 | 7.0 | 14x20x25 | 65x55x58 | 2.45 | 1 |
| PLF 130/10 | 1300 | 1250 | 10.0 | 20x20x25 | 72x56x64 | 3.6 | 1 |
| PLF 130/15 | 1300 | 1250 | 15.0 | 23x22x30 | 79x56x64 | 3.6 | 1 |
| PLF 130/30 | 1300 | 1250 | 30 | 28x28x38 | 79x59x69 | 6.0 | 3 |
| PLF 130/45 | 1300 | 1250 | 45.0 | 30x30x50 | 82x66x81 | 7.5 | 3 |
| PLF 130/60 | 1300 | 1250 | 60.0 | 30x40x50 | 80x76x84 | 9.6 | 3 |
Optional Features
Over-temperature limiter for thermal protection
Adjustable air intake opening in the furnace door
Exhaust air opening in the of the furnace roof
Option of sideways opening door
Observation hole enabling the operator observe the load during the operation
Data logger with the software
Adjustable air intake opening in the furnace door
Exhaust air opening in the of the furnace roof
Option of sideways opening door
Observation hole enabling the operator observe the load during the operation
Data logger with the software
RS422/485 communication
Cooling Fan for faster cooling processes
Jet Fan for faster exhaust of gases
Movable bottom enabling the operator to remove the sample while the furnace is still hot
Quartz element protection for heating elements
Protective gas system and connection
Cooling Fan for faster cooling processes
Jet Fan for faster exhaust of gases
Movable bottom enabling the operator to remove the sample while the furnace is still hot
Quartz element protection for heating elements
Protective gas system and connection
