ELV Series Elevator Furnaces

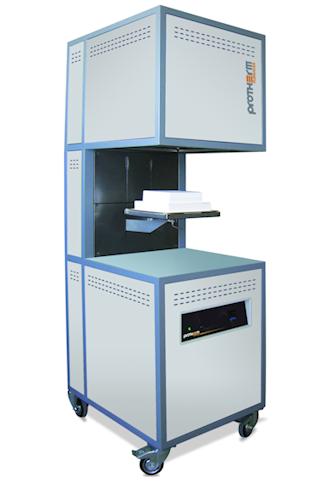

ELV 180/8
ELV series are designed for bottom loading operations and for quick charging and discharging procedures in laboratories.

Available with brick and fiber insulation elements, with a wide variety of options, ELV series is used for glaze fritting, glass melting and applications requiring quick removal of products from the furnace.

Standard ELV series furnaces cover a range from 1100°C to 1800°C, all of which have dual skin housing for low external temperatures and high inner temperature stability uniformity.

Multi-layers of products could be fitted into the furnace, enabling the experimentation of several samples at a time.

Gas feed-in with this series is a standard and various applications of gas controlled atmospheres is made possible.

This series equip a galvanized coating covered epoxy painted structure, providing a longer life time and aesthetics.





System Features

Customized controller option
High-quality fiber material
Exceptional temperature uniformity
Table top or self-standing design
Hand fitted brick-on-brick seal
High level temperature uniformity
Short heating times
High quality heating elements ensuring a long service life
Electrical protection
Precise, electric spindle drive with push button operation
Working Temperatures of up to 1800°C
System operation with solid-state-relays
Intuitive controller user interface

Specifications

Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Inner Volume (liters) Inner Dimensions (HxWxD) (cm) External Dimensions (HxWxD) (cm) Power (kW) Phase
ELV 110/8 1100°C 1050 7.5 20x18x21 122x63x81 2.0 1
ELV 140/8 1400°C 1350 7.4 18x18x23 122x63x81 4.9 3
ELV 160/8 1600°C 1550 8.0 20x20x20 190x62x77 5.2 3
ELV 170/8 1700°C 1650 8.0 20x20x20 190x62x77 7.2 3
ELV 180/8 1800°C 1750 8.0 20x20x20 190x62x77 7.8 3
Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Inner Volume (liters)
ELV 110/8 1100°C 1050 7.5
ELV 140/8 1400°C 1350 7.4
ELV 160/8 1600°C 1550 8.0
ELV 170/8 1700°C 1650 8.0
ELV 180/8 1800°C 1750 8.0

Model Inner Dimensions (HxWxD) (cm) External Dimensions (HxWxD) (cm) Power (kW) Phase
ELV 110/8 20x18x21 122x63x81 2.0 1
ELV 140/8 18x18x23 122x63x81 4.9 3
ELV 160/8 20x20x20 190x62x77 5.2 3
ELV 170/8 20x20x20 190x62x77 7.2 3
ELV 180/8 20x20x20 190x62x77 7.8 3

Optional Features

Over-temperature limiter for thermal protection
Exhaust air opening in the of the furnace roof
Adjustable air inlet through the floor
Data logger with the software
RS422/485 communication
Protective Gas System and Connection

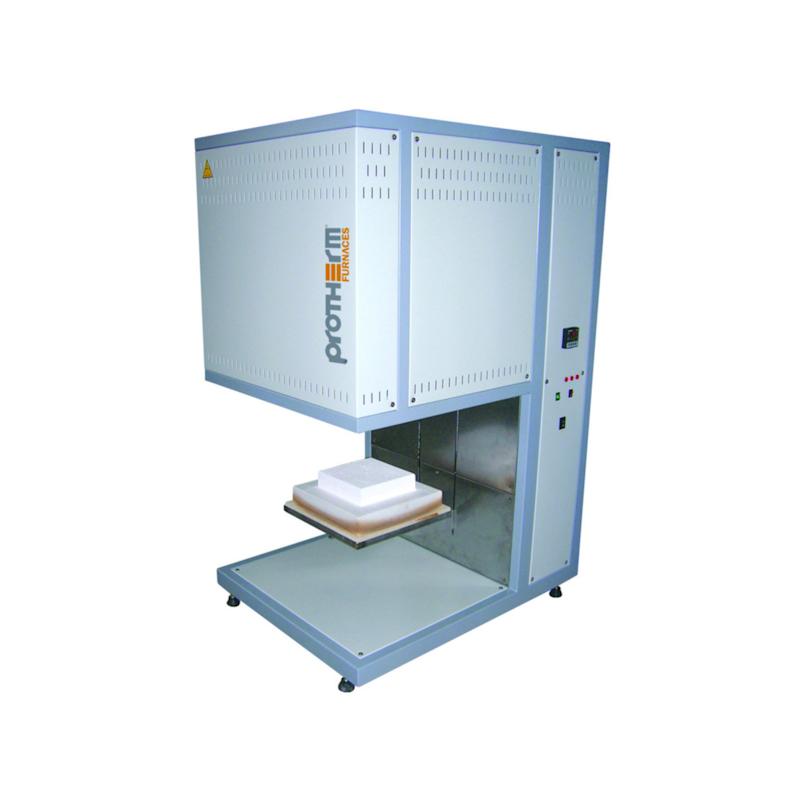

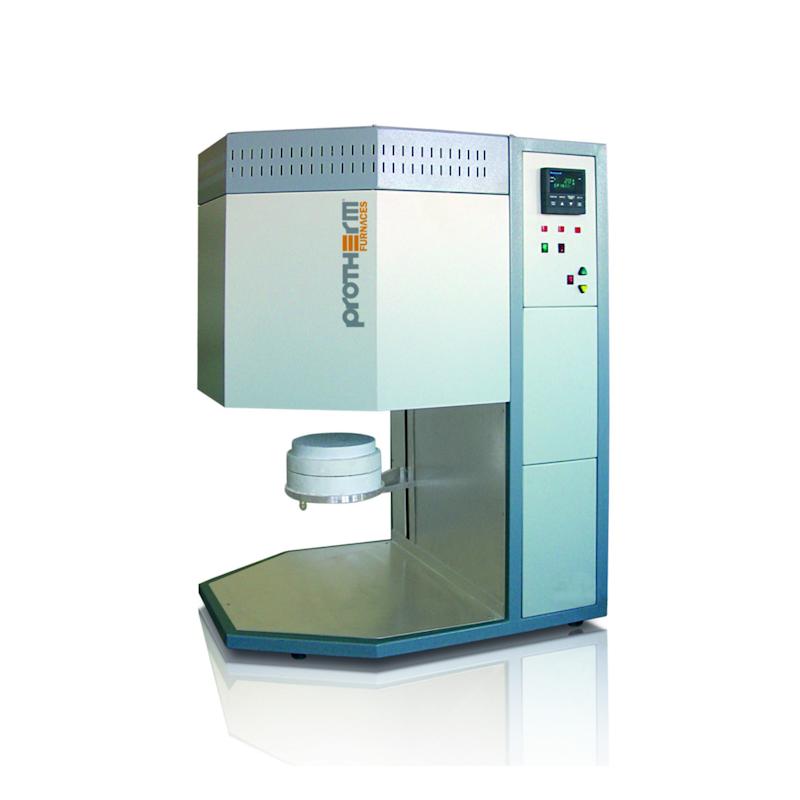

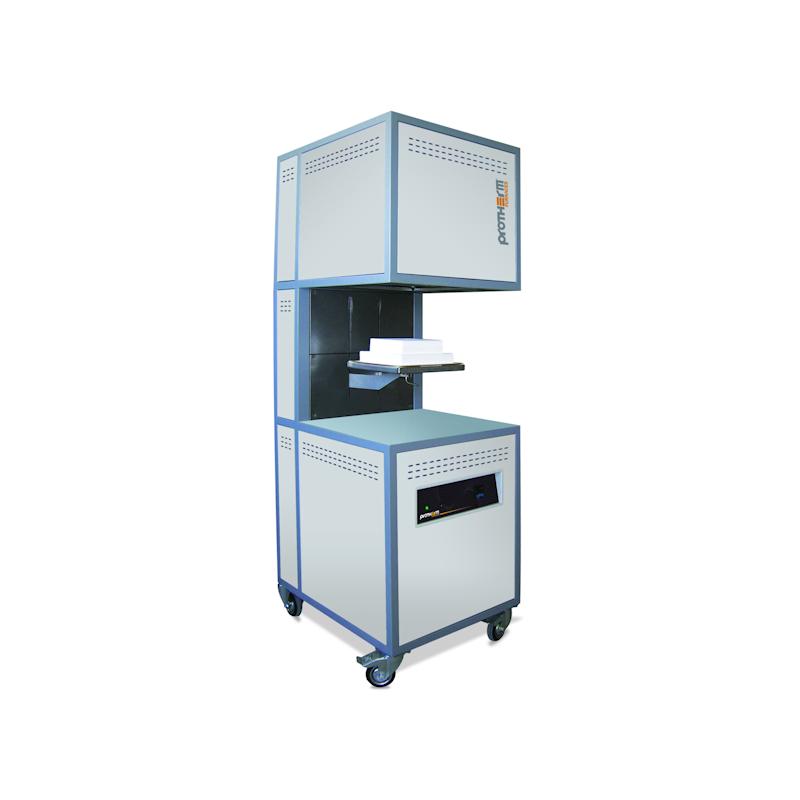

Product Photos
