PTF Series Tube Furnaces
PTF 18/50/400
High Temperature PTF series tube furnaces are tube furnaces that could be used when laboratory experimentation is performed horizontally or vertically.

Standard High Temperature PTF series furnaces cover a range from 1600°C to 1800°C, using vertically mounted Molybdenum Disiciliside heating elements for processes. Vertical mounted elements provide ease of replacement.

The stable temperature environment, and the option to be able to modify the furnace for a vacuum make these furnaces suitable for many possible processes.






System Features

Standard working tube of C610 and C799
Separate or integrated control system
Customized controller option
High-quality fiber material
High level temperature uniformity
Standard long working tube protruding from sides suitable for operation with flanges
Electrical protection
Galvanized coating covered epoxy paint structure
High quality heating elements ensuring a long service life
Intuitive controller user interface
System operation with silicone controlled rectifiers

Specifications

Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Tube Size (Dø x length) (mm) Heated Zone (mm) External Dimensions (cm) Power (kW) Phase
PTF 17/38/200 1700°C 1650 40x600 200 83x46x53 3.0 1
PTF 17/50/200 1700°C 1650 50x600 200 83x46x53 3.0 1
PTF 17/75/200 1700°C 1650 75x600 200 83x46x53 3.0 1
PTF 17/38/300 1700°C 1650 40x700 300 83x56x53 4.0 3
PTF 17/50/300 1700°C 1650 50x700 300 83x56x53 4.0 3
PTF 17/75/300 1700°C 1650 75x700 300 83x56x53 4.0 3
PTF 17/38/400 1700°C 1650 40x800 400 83x66x53 4.8 3
PTF 17/50/400 1700°C 1650 50x800 400 83x66x53 4.8 3
PTF 17/75/400 1700°C 1650 75x800 400 83x66x53 4.8 3
PTF 18/38/200 1800°C 1750 40x600 200 83x46x53 3.0 1
PTF 18/50/200 1800°C 1750 50x600 200 83x46x53 3.0 1
PTF 18/75/200 1800°C 1750 75x600 200 83x46x53 3.0 1
PTF 18/50/300 1800°C 1750 40x700 300 83x56x53 4.0 3
PTF 18/50/300 1800°C 1750 50x700 300 83x56x53 4.0 3
PTF 18/75/300 1800°C 1750 75x700 300 83x56x53 4.0 3
PTF 18/38/400 1800°C 1750 40x800 400 83x66x53 4.8 3
PTF 18/50/400 1800°C 1750 50x800 400 83x66x53 4.8 3
PTF 18/75/400 1800°C 1750 75x800 400 83x66x53 4.8 3
Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Tube Size (Dø x length) (mm)
PTF 17/38/200 1700°C 1650 40x600
PTF 17/50/200 1700°C 1650 50x600
PTF 17/75/200 1700°C 1650 75x600
PTF 17/38/300 1700°C 1650 40x700
PTF 17/50/300 1700°C 1650 50x700
PTF 17/75/300 1700°C 1650 75x700
PTF 17/38/400 1700°C 1650 40x800
PTF 17/50/400 1700°C 1650 50x800
PTF 17/75/400 1700°C 1650 75x800
PTF 18/38/200 1800°C 1750 40x600
PTF 18/50/200 1800°C 1750 50x600
PTF 18/75/200 1800°C 1750 75x600
PTF 18/50/300 1800°C 1750 40x700
PTF 18/50/300 1800°C 1750 50x700
PTF 18/75/300 1800°C 1750 75x700
PTF 18/38/400 1800°C 1750 40x800
PTF 18/50/400 1800°C 1750 50x800
PTF 18/75/400 1800°C 1750 75x800

Model Heated Zone (mm) External Dimensions (cm) Power (kW) Phase
PTF 17/38/200 200 83x46x53 3.0 1
PTF 17/50/200 200 83x46x53 3.0 1
PTF 17/75/200 200 83x46x53 3.0 1
PTF 17/38/300 300 83x56x53 4.0 3
PTF 17/50/300 300 83x56x53 4.0 3
PTF 17/75/300 300 83x56x53 4.0 3
PTF 17/38/400 400 83x66x53 4.8 3
PTF 17/50/400 400 83x66x53 4.8 3
PTF 17/75/400 400 83x66x53 4.8 3
PTF 18/38/200 200 83x46x53 3.0 1
PTF 18/50/200 200 83x46x53 3.0 1
PTF 18/75/200 200 83x46x53 3.0 1
PTF 18/50/300 300 83x56x53 4.0 3
PTF 18/50/300 300 83x56x53 4.0 3
PTF 18/75/300 300 83x56x53 4.0 3
PTF 18/38/400 400 83x66x53 4.8 3
PTF 18/50/400 400 83x66x53 4.8 3
PTF 18/75/400 400 83x66x53 4.8 3

Optional Features

Over-temperature limiter for thermal protection
Display of inner tube temperature with an additional thermocouple
Check valve at gas outlet
Gas supply and blend systems for operation
Alternative working tubes
Gas and water cooled vacuum flanges
Universal design for vertical and angular usage
Data logger with the software
RS422/485 communication

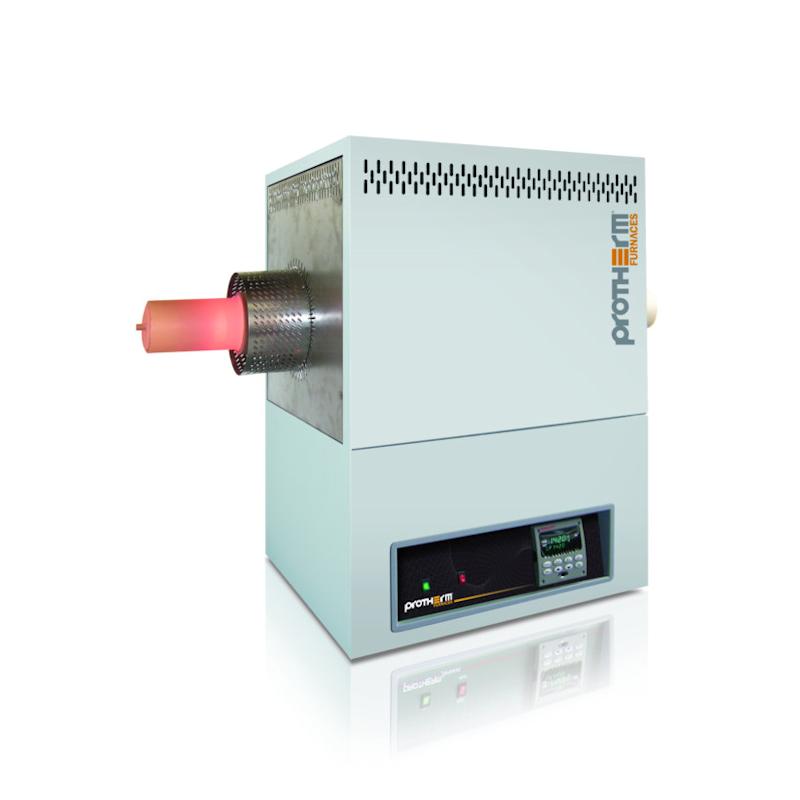

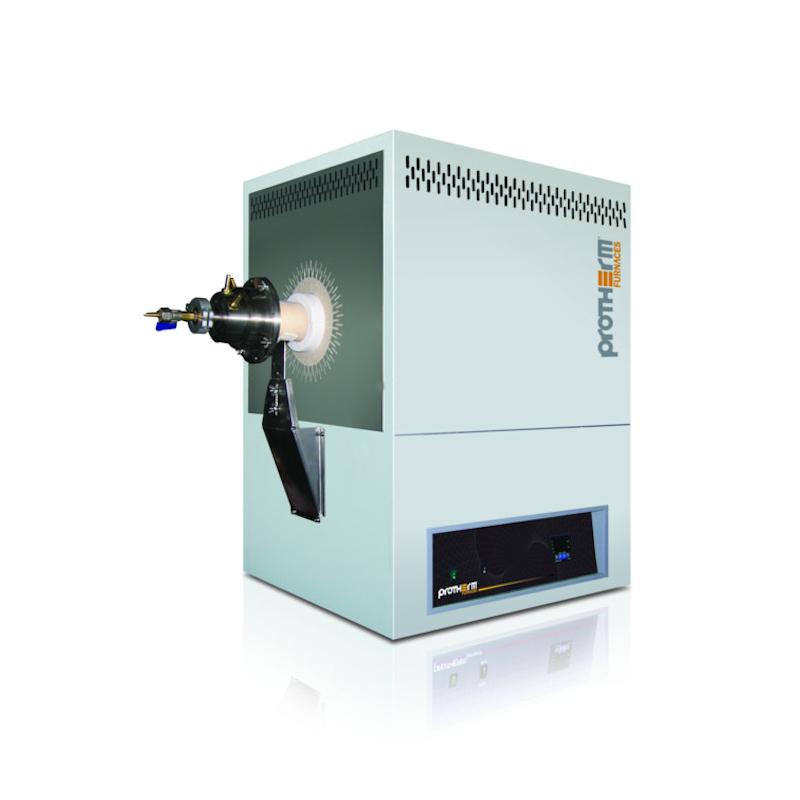

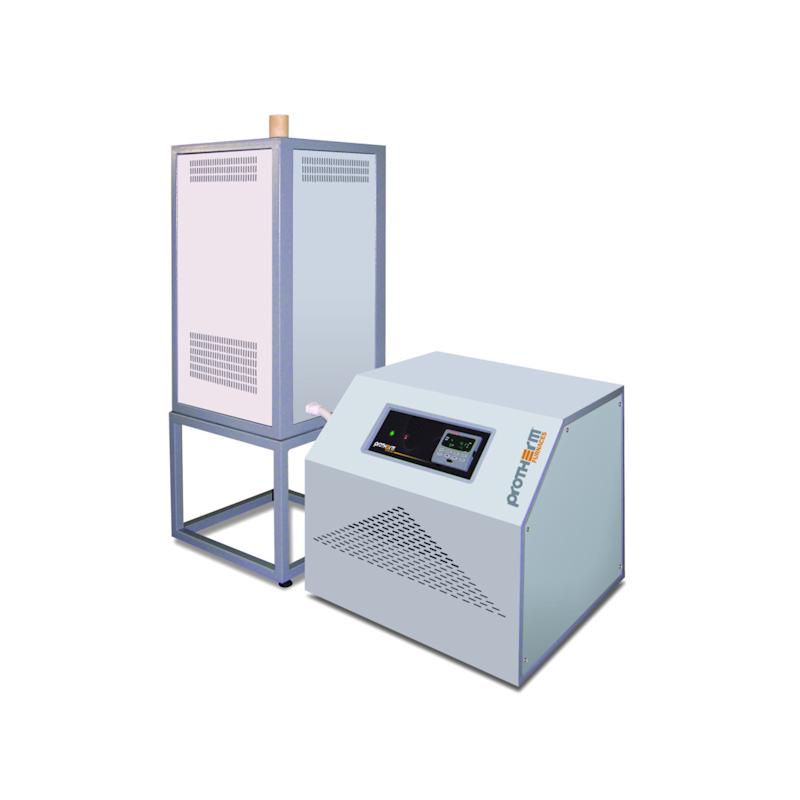

Product Photos
