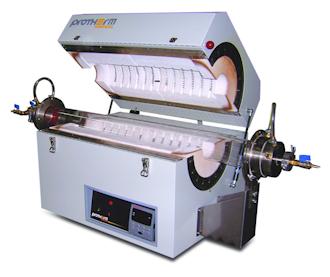

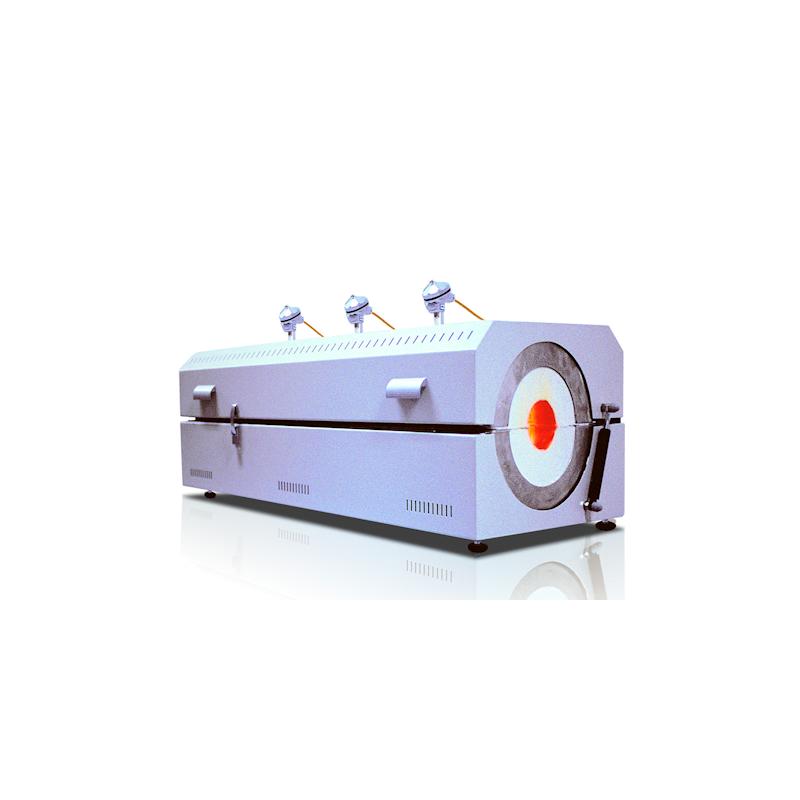

ASP Series Split Furnaces
ASP 11/100/500

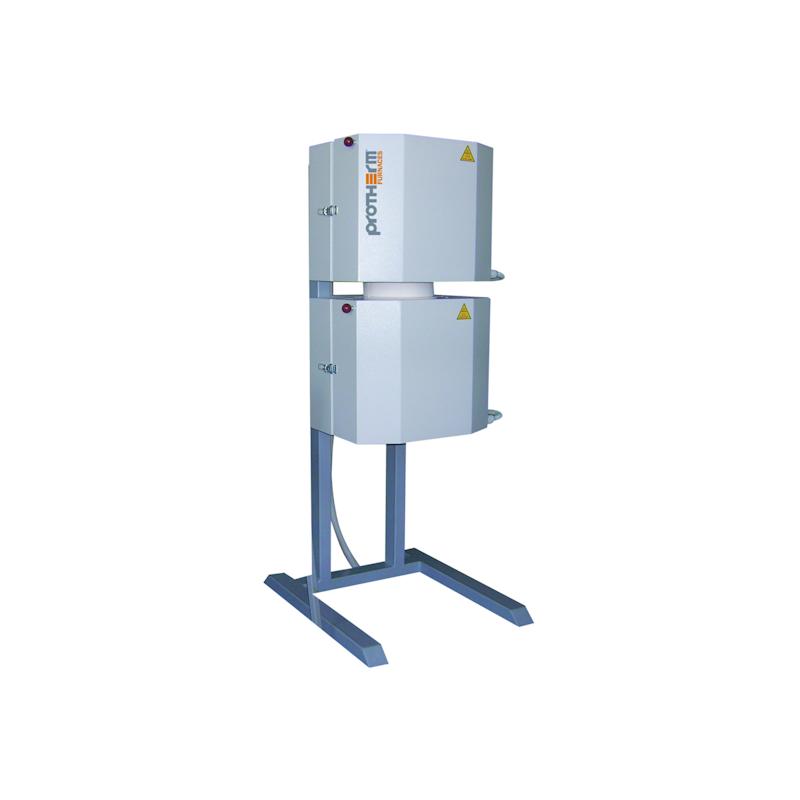

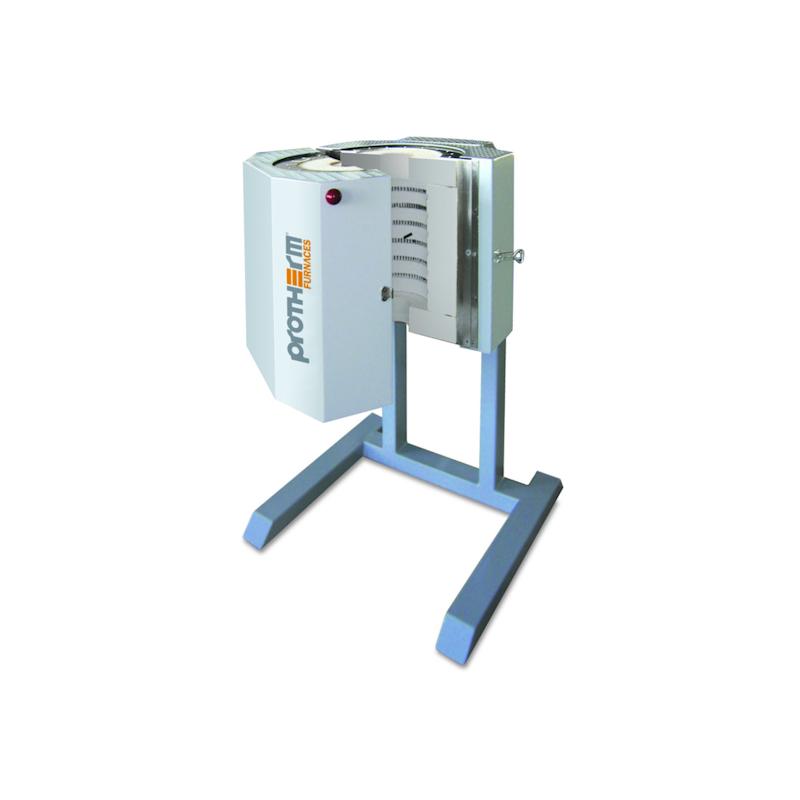

ASP series tube furnaces are split furnaces with the multi-zone optionality that could be used when laboratory experimentation is performed horizontally, or vertically.

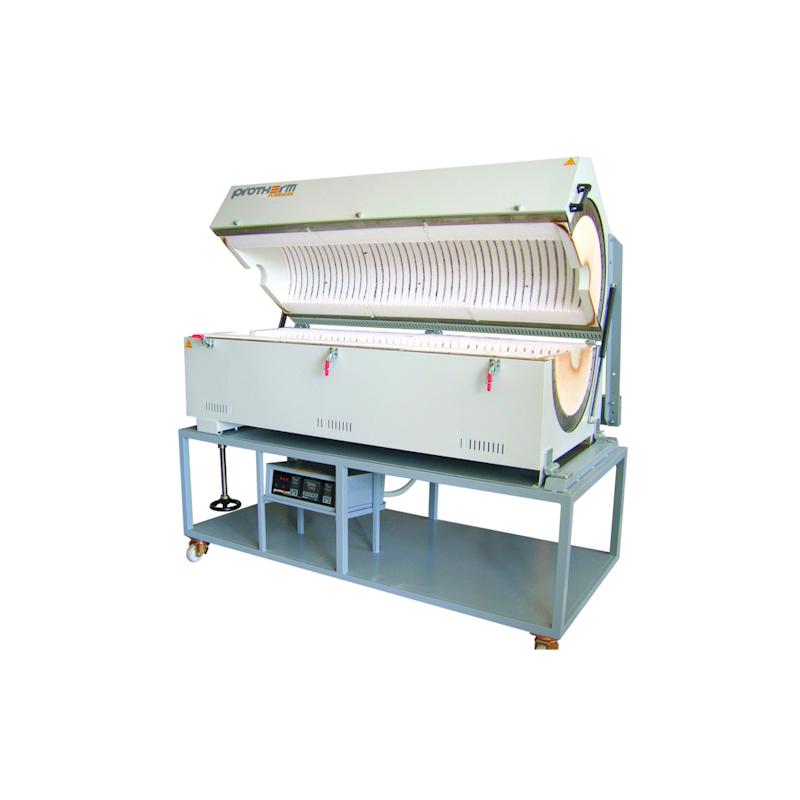

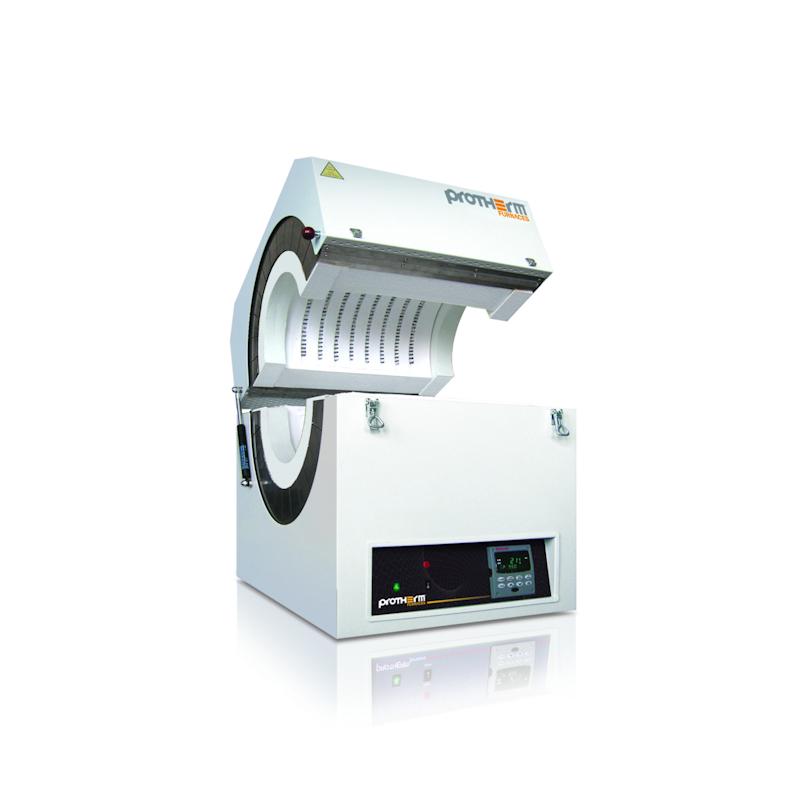

Availability of opening up the furnaces enables operator to be able to use different tubes or reactors, or any other inline heating material with the furnace.

Configuration of the zone temperatures, and the stable temperature environments make these furnaces suitable for many possible processes.

With an easy to replace working tube as well as additional standard equipment options, these furnaces use can be operated with multiple zones of different lengths.





System Features

Standard working tube of C610
Separate or integrated control system
Master and slave controller availability
Customized controller option
High-quality fiber material
High level temperature uniformity

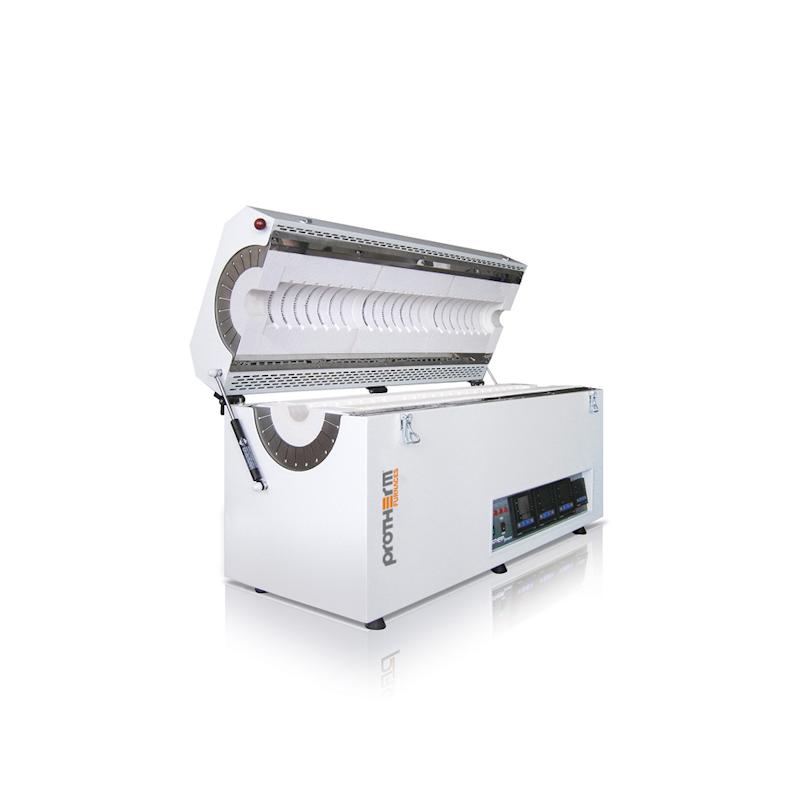

Multi zone design

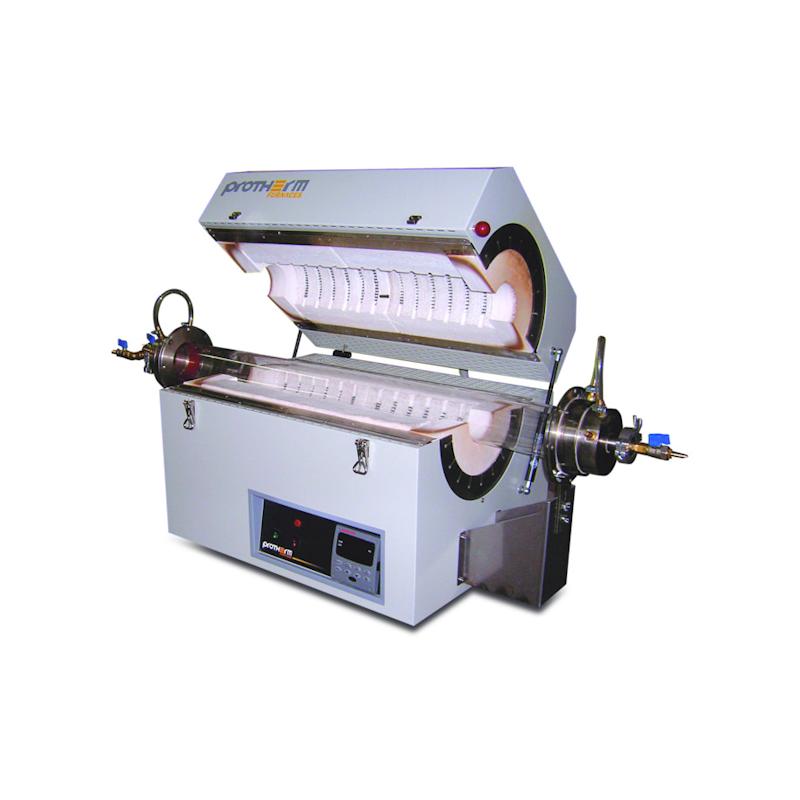

Standard long working tube protruding from sides suitable for operation with flanges
Electrical protection
System operation with silicone controlled rectifiers
High quality heating elements ensuring a long service life
Galvanized coating covered epoxy paint structure
Intuitive controller user interface

Specifications

Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Maximum Bore Diameter (mm) Heated Length (mm) Stable Zone Length (mm) External Dimensions HxWxD (mm) Power (kW) Phase Supply (V)
ASP 11/70/250 1100 1050 70 250 80 510x400x500 1.6 1 220
ASP 11/70/500 1100 1050 70 500 160 510x650x500 2.4 1 220
ASP 11/100/250 1100 1050 100 250 80 510x400x500 2.4 1 220
ASP 11/100/500 1100 1050 100 500 160 510x650x500 3.0 1 220
ASP 11/150/250 1100 1050 130 250 80 510x400x500 3.0 1 220
ASP 11/150/500 1100 1050 130 500 160 510x650x500 3.5 1 220
ASP 11/200/250 1100 1050 160 250 80 510x400x500 3.0 1 220
ASP 11/200/500 1100 1050 160 500 160 510x650x500 3.5 1 220
ASP 11/250/400 1100 1050 200 400 130 710x555x740 6.0 3 380/220
ASP 11/300/400 1100 1050 250 400 130 810x555x860 9.0 3 380/220
ASP 15/100/200 1500 1450 45 200 65 1300x350x650 1.5 1 220
ASP 15/100/400 1500 1450 45 400 130 1300x550x650 2.5 1 220
ASP 15/150/200 1500 1450 95 200 65 1300x350x650 3.4 1 220
ASP 15/150/400 1500 1450 95 400 130 1300x550x650 5.0 3 400
ASP 15/200/200 1500 1450 145 200 65 1400x350x750 6.0 3 400
ASP 15/200/400 1500 1450 145 400 130 1400x550x750 7.0 3 400
ASP 15/250/200 1500 1450 195 200 65 1400x350x750 7.0 3 400
ASP 15/250/400 1500 1450 195 400 130 1400x550x750 9.0 3 400
Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Maximum Bore Diameter (mm) Heated Length (mm)
ASP 11/70/250 1100 1050 70 250
ASP 11/70/500 1100 1050 70 500
ASP 11/100/250 1100 1050 100 250
ASP 11/100/500 1100 1050 100 500
ASP 11/150/250 1100 1050 130 250
ASP 11/150/500 1100 1050 130 500
ASP 11/200/250 1100 1050 160 250
ASP 11/200/500 1100 1050 160 500
ASP 11/250/400 1100 1050 200 400
ASP 11/300/400 1100 1050 250 400
ASP 15/100/200 1500 1450 45 200
ASP 15/100/400 1500 1450 45 400
ASP 15/150/200 1500 1450 95 200
ASP 15/150/400 1500 1450 95 400
ASP 15/200/200 1500 1450 145 200
ASP 15/200/400 1500 1450 145 400
ASP 15/250/200 1500 1450 195 200
ASP 15/250/400 1500 1450 195 400

Model Stable Zone Length (mm) External Dimensions HxWxD (mm) Power (kW) Phase Supply (V)
ASP 11/70/250 80 510x400x500 1.6 1 220
ASP 11/70/500 160 510x650x500 2.4 1 220
ASP 11/100/250 80 510x400x500 2.4 1 220
ASP 11/100/500 160 510x650x500 3.0 1 220
ASP 11/150/250 80 510x400x500 3.0 1 220
ASP 11/150/500 160 510x650x500 3.5 1 220
ASP 11/200/250 80 510x400x500 3.0 1 220
ASP 11/200/500 160 510x650x500 3.5 1 220
ASP 11/250/400 130 710x555x740 6.0 3 380/220
ASP 11/300/400 130 810x555x860 9.0 3 380/220
ASP 15/100/200 65 1300x350x650 1.5 1 220
ASP 15/100/400 130 1300x550x650 2.5 1 220
ASP 15/150/200 65 1300x350x650 3.4 1 220
ASP 15/150/400 130 1300x550x650 5.0 3 400
ASP 15/200/200 65 1400x350x750 6.0 3 400
ASP 15/200/400 130 1400x550x750 7.0 3 400
ASP 15/250/200 65 1400x350x750 7.0 3 400
ASP 15/250/400 130 1400x550x750 9.0 3 400

Optional Features

Over-temperature limiter for thermal protection
Display of inner tube temperature with an additional thermocouple
Check valve at gas outlet
Gas supply and blend systems for operation
Alternative working tubes
Gas and water cooled vacuum flanges
Universal design for vertical and angular usage
Data logger with the software
RS422/485 communication
